When Coloring Distribution for a group is set to "Banded" (via the Levels and Color page of the Contour & Multi-Coloring Details dialog), you may customize the color bands on the Bands page of the dialog.

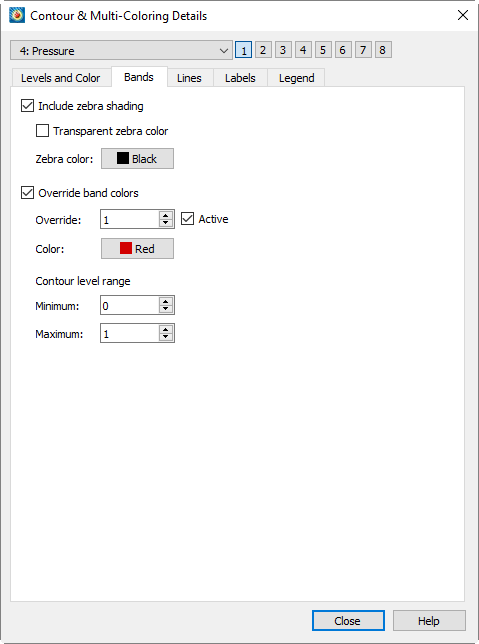

The Bands page of the Contour Details dialog has the following options:
• Include Zebra Shading - This effect colors every other band with a specific color (or no color at all).
• Override Band Colors - Specific contour bands can be assigned a unique basic color. This is useful for forcing a particular region to use blue, for example, to designate an area of water. You can define up to 16 color overrides.
• Override - Specifies which override is being edited.
• Active - Toggle this checkbox to turn the override on or off.
• Color - Select the color for the override using the Color Chooser.
• Minimum, Maximum - Choose the range which will be overridden to the specified color.
Use the [1], [2], [3], [4], [5], [6], [7], and [8] button to specify attributes for a specific contour group. Each contour group has its own settings for the contour attributes established in the Contour Details dialog. Refer to Contour Groups for additional information.
