7 - 1.3   Derived Volume Object Plotting

The Volume page of the Zone Style dialog allows you to specify whether or not to show streamtraces, iso-surfaces, or slices for the selected zone(s). Right-click in the appropriate column to choose yes or no. Figure 7-6 shows a plot with two zones where streamribbons and an iso-surface have been excluded from zone 2.

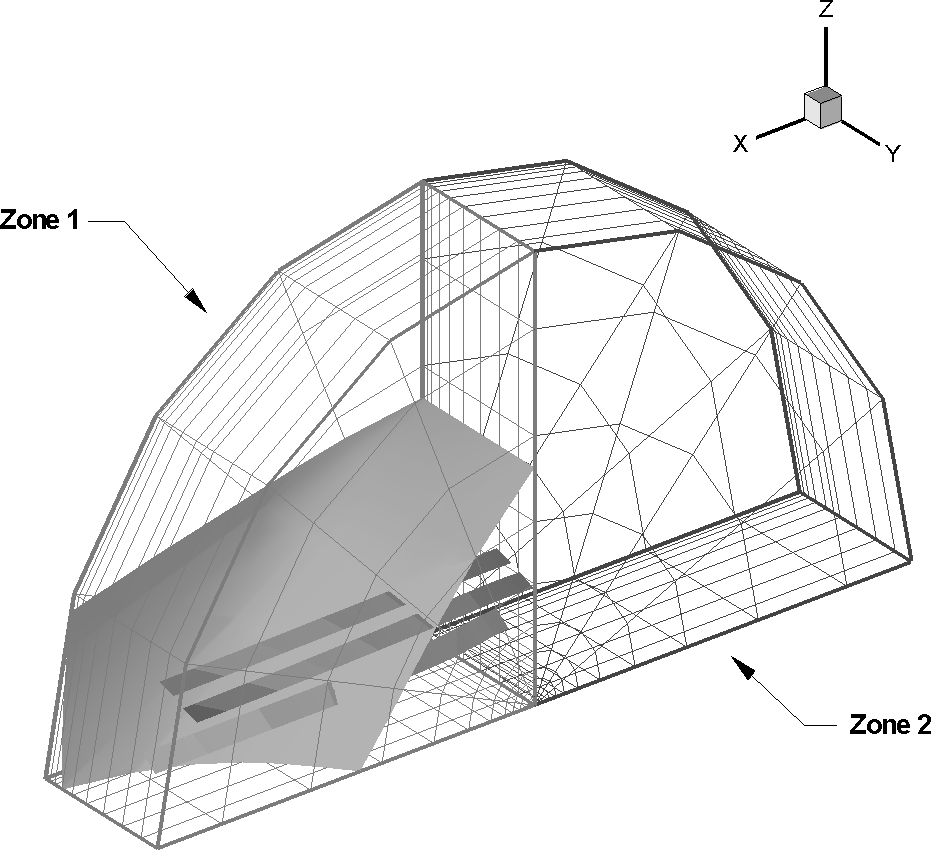

Figure 7-6. A plot where streamribbons and an iso-surface have been excluded from zone 2.
